WireGuard

WireGuard is a modern VPN protocol, fast and simple, carrying a whole device's traffic. Its traffic is easy to recognise, so it is not meant for getting past censorship; use it to reach your own server, to network a few devices, or as an ordinary VPN where the network is open.

TransportUDP
Coressing-box (WireGuard endpoint)
Domain and certificatenot needed
Common clientsthe official WireGuard apps; mihomo and sing-box clients

From the menu

sing-box: main menu 24 (Nodes)11 (WireGuard).

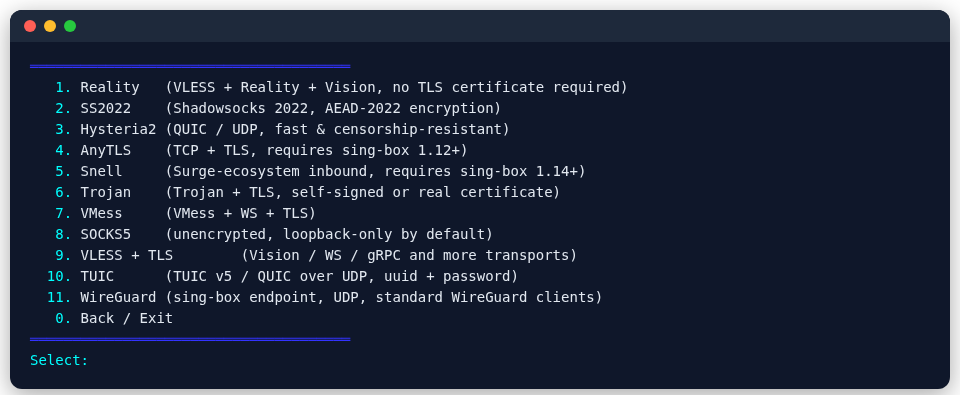

sing-box WireGuard menu

From the command line

bash
psm node add sing-box wireguard --tag my-wg --port 51820 --peer-count 2

--peer-count is the number of clients to generate; each gets its own keys and address.

Export the client configs

bash
psm node export sing-box wireguard my-wg

prints a standard wg-quick file per client, to import into the official WireGuard app; mihomo and sing-box clients can connect with the same config.

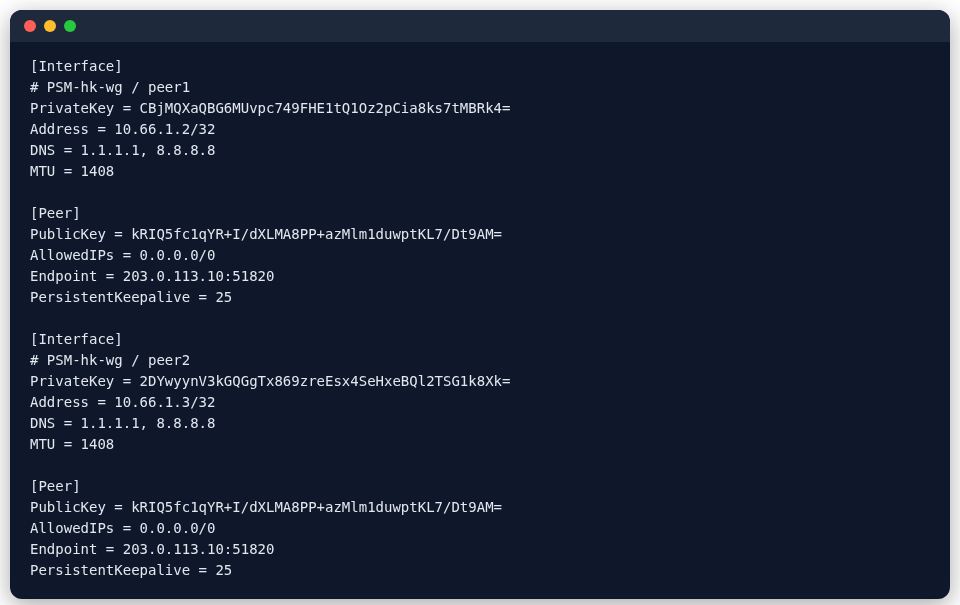

wg-quick client configs exported for WireGuard

Remember to allow this UDP port in your cloud provider's security group.
