Hysteria2

Hysteria2 runs over QUIC (UDP) with aggressive congestion control, and is usually far faster than TCP protocols on lossy or congested evening-peak routes. Pair it with REALITY: one TCP line and one UDP line, each a backup for the other.

Transport	UDP (QUIC)
Cores	sing-box, mihomo, Xray (v26.3.27 or later); plus the official standalone server
Domain and certificate	a certificate is needed; a self-signed one works
Common clients	v2rayN, v2rayNG, Shadowrocket, Clash Verge Rev, sing-box, NekoBox

From the menu

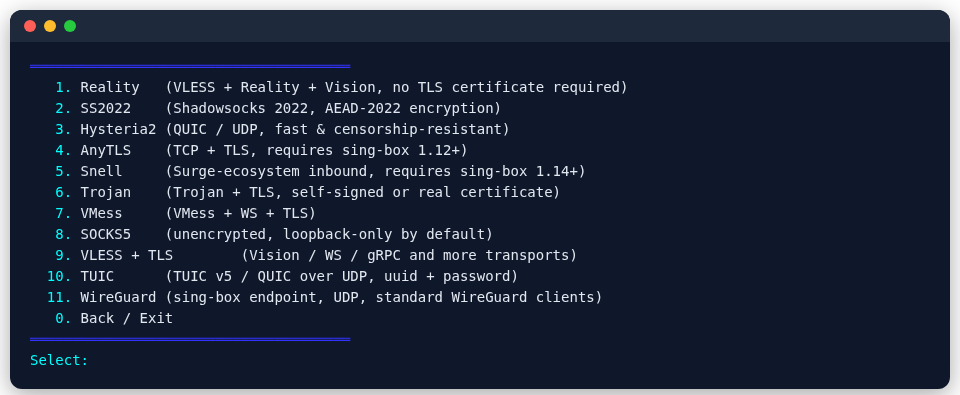

• sing-box: main menu 2 → 4 (Nodes) → 3 (Hysteria2)
• mihomo: main menu 3 → 4 → 3
• Xray: main menu 4 → 4 → 8
• Official standalone server: main menu 7 (Hysteria2) → 1 (Install / reconfigure); afterwards you can change the password, bandwidth limit and certificate, "Show share link" exports it, and 10 (Path MTU discovery on / off) switches path MTU discovery off or back on

The sing-box and mihomo menus can generate a self-signed certificate for you.

From the command line

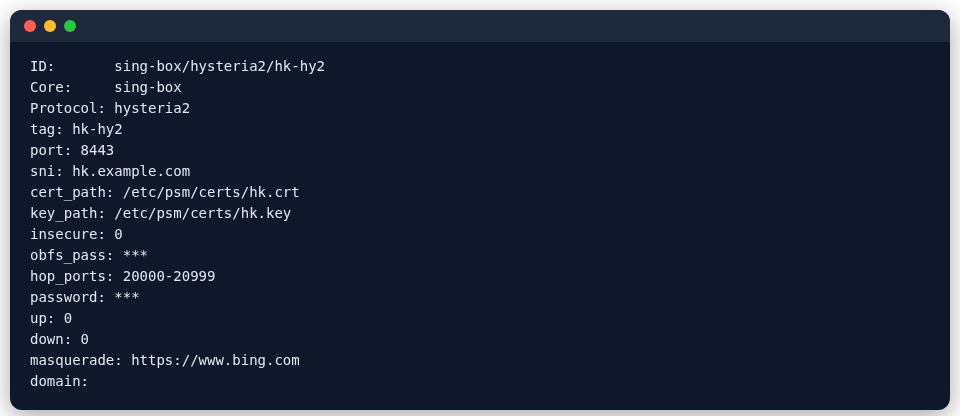

psm node add sing-box hysteria2 --tag my-hy2 --port 8443 \
  --sni hk.example.com \
  --cert-path /etc/psm/certs/hk.crt --key-path /etc/psm/certs/hk.key \
  --obfs-pass OBFS_PASSWORD --hop-ports 20000-20999

Option	Meaning
--sni, --cert-path, --key-path	the certificate; add --insecure 1 for a self-signed one (leave all three out and PSM signs one; the link carries its fingerprint, pinSHA256)
--password	the authentication password; generated when left out
--obfs-pass	turn obfuscation on with this password
--obfs-type salamander|gecko	obfuscation type, Salamander by default; Gecko needs sing-box 1.14+, mihomo 1.19.26+ or Xray v26.3.27+
--hop-ports START-END	port hopping: forward this UDP range to the node's port
--bbr-profile conservative|standard|aggressive	how hard the server's BBR congestion control sends (without a bandwidth limit); unset keeps the core's default, standard — try aggressive on lossy cross-border lines. Needs sing-box 1.14+, mihomo 1.19.24+ or Xray v26.4.13+ (Xray's stable v26.3.27 has not got it; its preview has)
--disable-pmtud true|false	switch off QUIC path MTU discovery (3x-ui's Disable Path MTU Discovery): the server stops probing for larger packets and keeps sending small ones, which helps on paths that drop large packets; clients need no change. sing-box 1.14+ and Xray; mihomo has no such option
--ech true	add ECH (sing-box / mihomo)

Port hopping

Some providers throttle or block a single UDP port. With port hopping, the client keeps changing its port within a range, and the server's firewall rules forward the whole range to the same node. PSM writes the forwarding rules and restores them after a reboot; see Port hopping.

Allow the node's port and the whole hopping range (both UDP) in your cloud provider's security group.

Export for clients

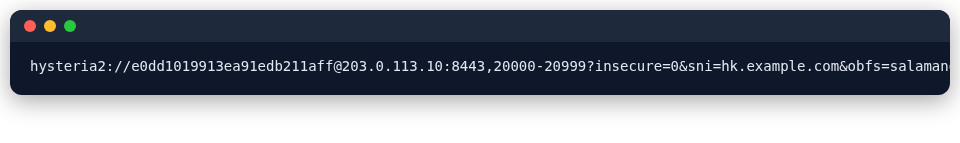

psm node export sing-box hysteria2 my-hy2

prints a hysteria2:// link that already carries the port hopping and obfuscation settings:
